After the Installation of the SAKSHAM Full Package. Through SAKSHAM Documentation Manual, SAKSHAM Library will be automatically gets installed in your Codesys Project. Now get to know how to use SAKSHAM Library for Logic building Projects:

How to use the SAKSHAM Library

Open CODESYS and follow the steps:

➡️ User must left click on New Project in CODESYS

Install

➡️ After Clicking on New project the New Project Pop-up Window appears and there you can see the SAKSHAM PROJECTS and it contains the Template and the Templates are: PC Logic, PLC Logic and SCADA , So you can use these Templates for your Project.

➡️ Working with PC choose the PC Logic as for Template

➡️ Working with PLC choose the PLC Logic as for Template

Install

➡️ And then after Select the PC Logic Template as for the Logic Building Project and Click on OK button.

Install

Now use the Library for the Development of Program. Steps are as given:

➡️ Step 1: Click on + near Application Folder

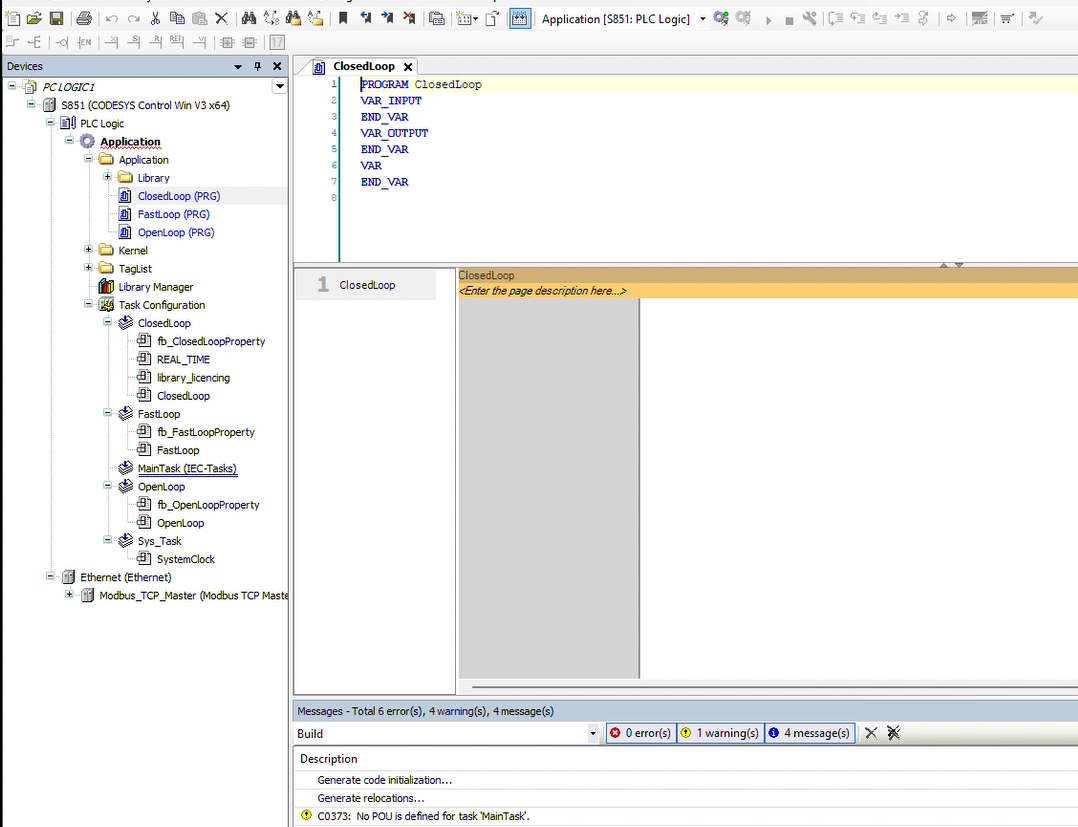

  • Inside Application folder you will get 3 Program Pages:

  • ClosedLoop (PRG):- In this we can run ClosedLoop Logic Blocks (e.g: PID, DACA etc.)

  • FastLoop(PRG):- In this we can run FastLoop Logic Blocks

  • OpenLoop (PRG):- In this we can run OpenLoop Logic Blocks (e.g: Motor, MOV etc.)

Add Folder Step 2

➡️ Step 2: Let's Add the logic Block to the PRG Page (ClosedLoop)

Connect Pins

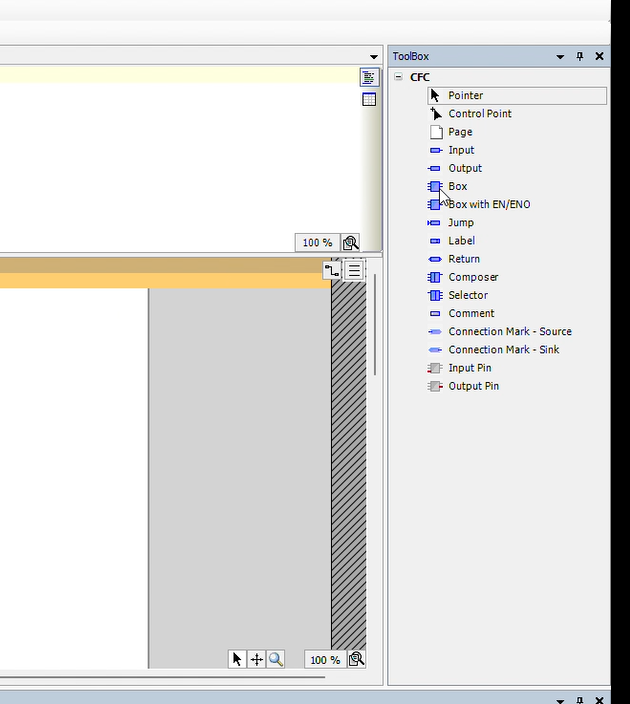

➡️ Step 3: Now, Drag a Box from the ToolBox and Drop in the Program Page

Connect Pins

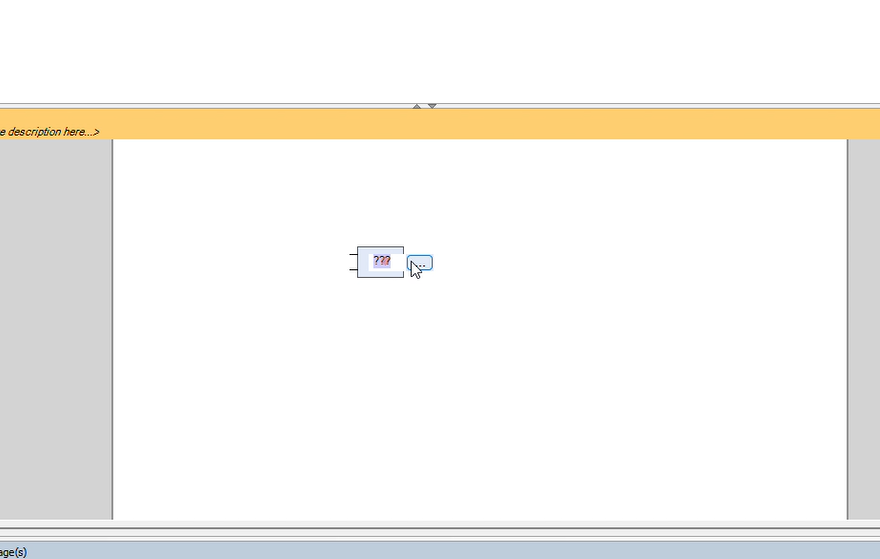

➡️ Step 4: Click on 3-dots and Browse for the SAKSHAM Library connectivity

Connect Pins

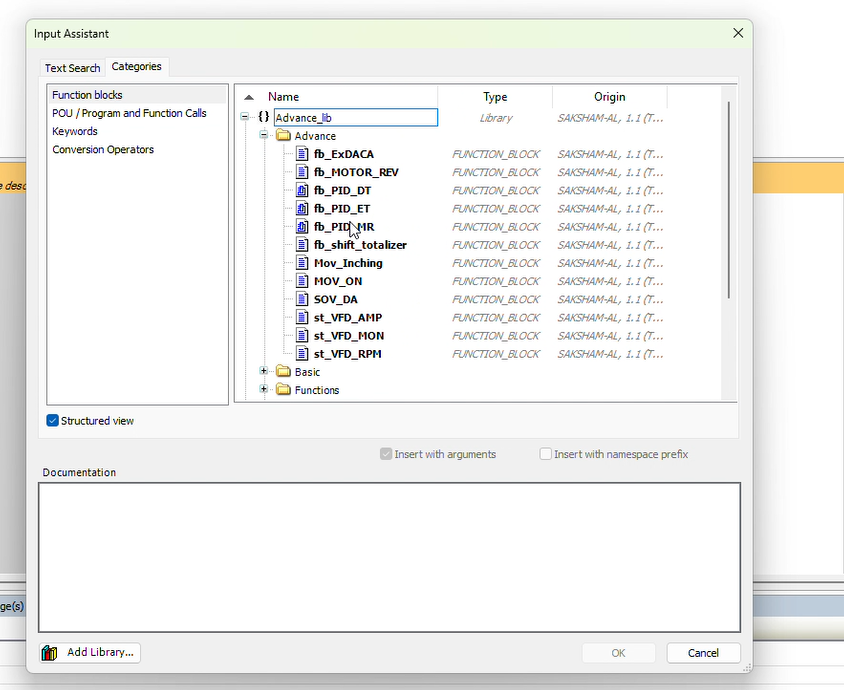

Now from the Library select the required Logic Block you want to add.

Connect Pins

➡️ Step 5: Rename the Logic Block as Here, it's HBP101

namelib tagname

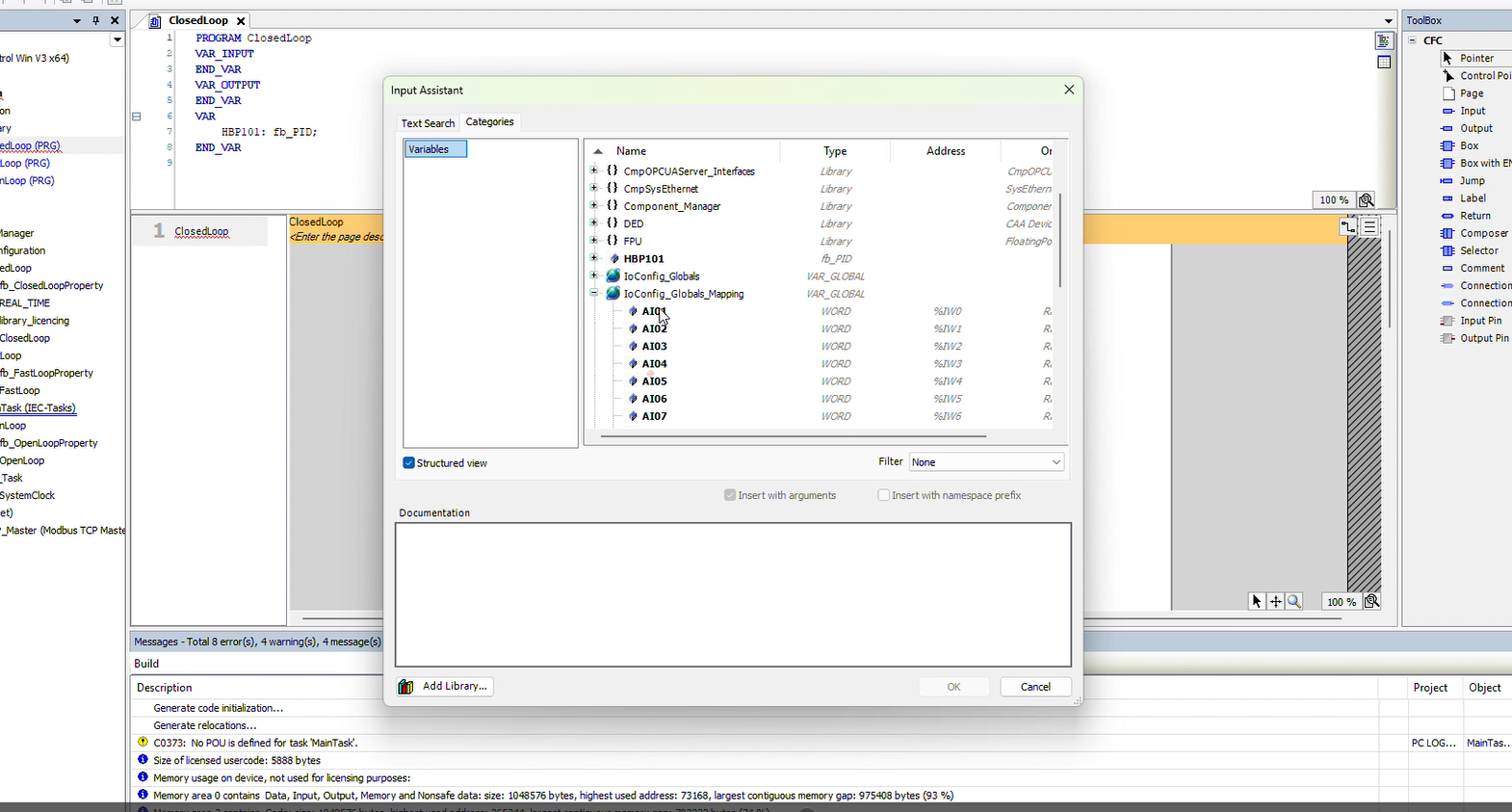

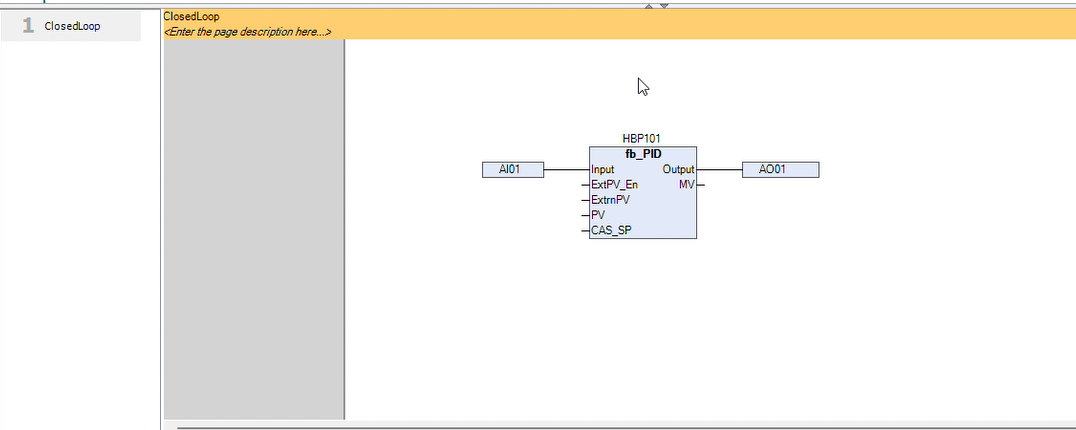

➡️ Step 6: Similarly, Drag one Input and Output Pins from the ToolBox and connect with our Rack-IOs

namelib

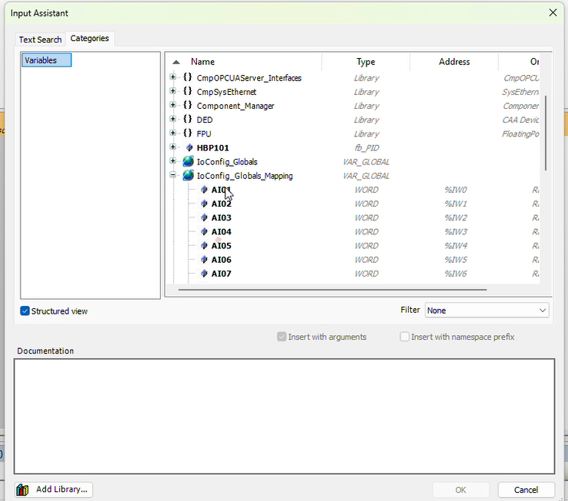

As the Rack-IOs window is shown:

tagname

The IOs are connected to the Input and Output Pins.

Pins

➡️ Step 7: Click On the PLC module, Generate code and Run the Project And Click on YES to set the active path for the PLC Communication

Connect Pins

Connect Pins

➡️ Step 8: Now Click on Scan Network and Add select the appropriate device and click on OK

namelib

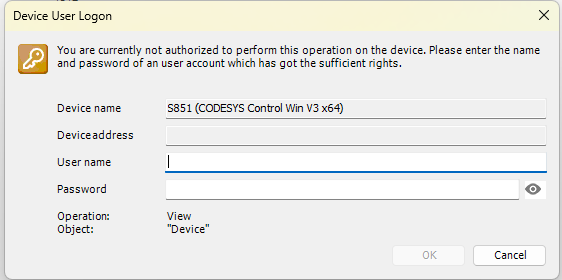

➡️ Step 9: Now the Device User Login window will appear, And enter the Username and Password as you have set earlier and click on OK button

namelib

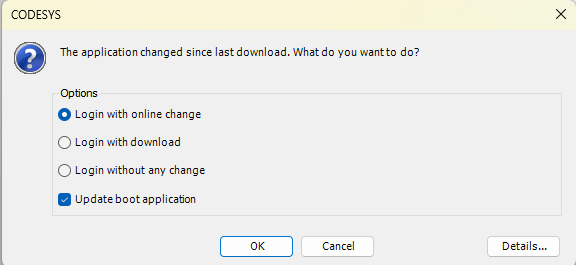

➡️ Step 10: New Pop up window will open select the "Login with online change" and check the "Update boot application" option and click on OK

namelib

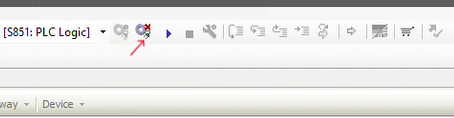

➡️ Step 11: Click on the Login button.

namelib

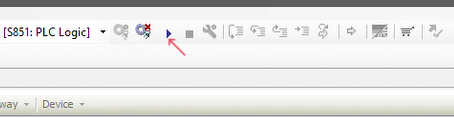

➡️ Step 12: After processing a while press on Start button

namelib

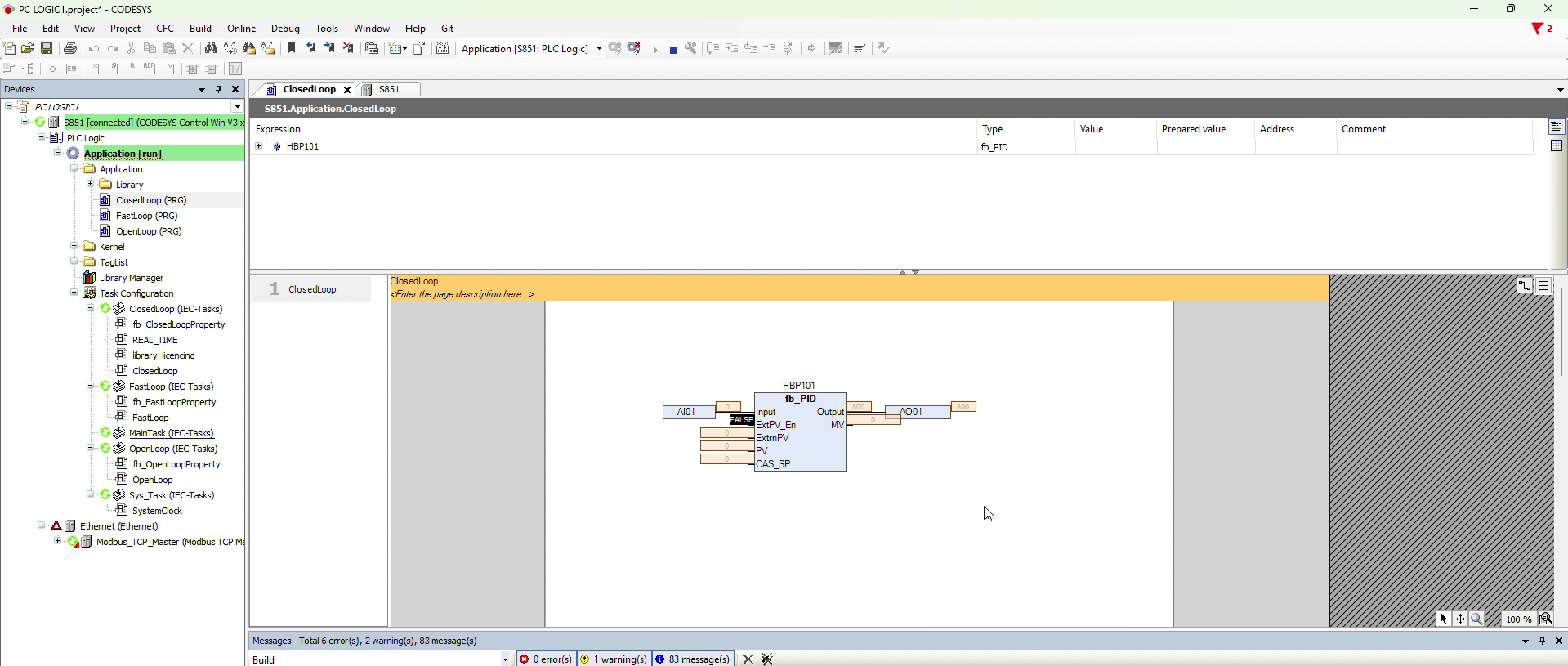

✅ Project is now running successfully!

namelib
